Description

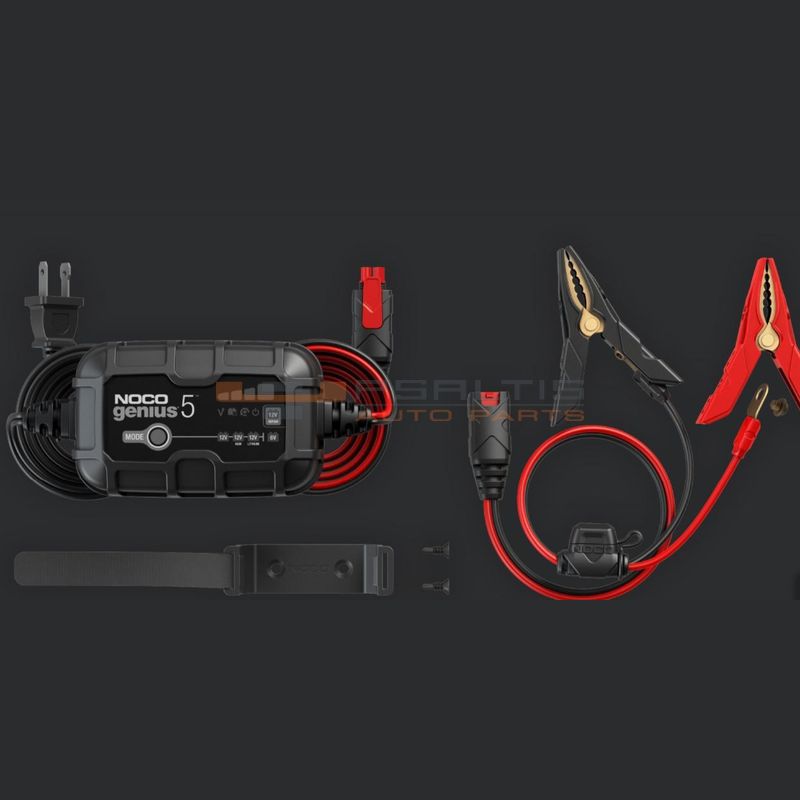

What’s In The Box
- GENIUS5 Battery Charger w/ Interchangeable Connector
- Clamps w/ Integrated Eyelets (M6)

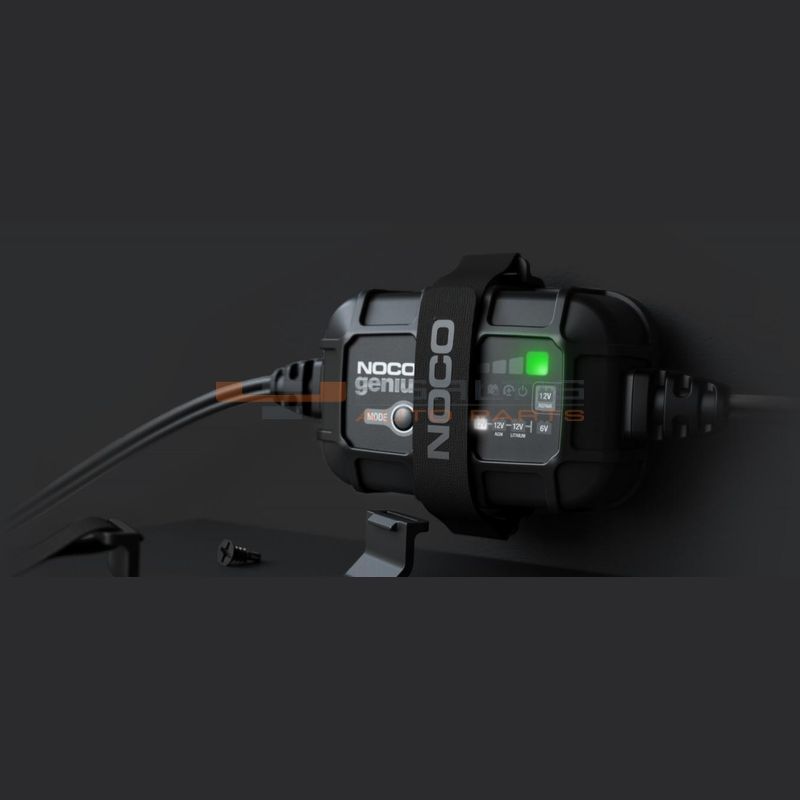

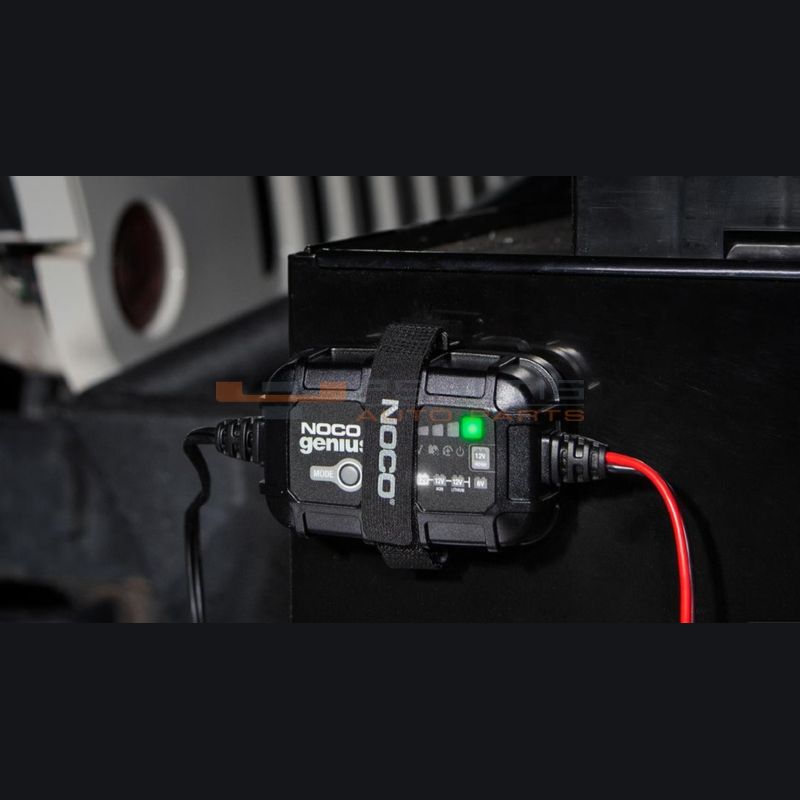

- Mounting Bracket w/ Strap
- (2) Self-Tapping Screws
- User Guide & Warranty Information
Operating Requirements
Line Voltage: 120V to 240V AC
Frequency: 50Hz to 60Hz
Operating Temperature: -4° to 104°F(-20° to 40°C)
Storage Temperature: -22° to 140°F(-30° to 60°C)
Charging
Current: 5 Amps DC
Voltages: 6 Volts, 12 Volts
Chemistry: Lead-Acid and Lithium
Types: AGM, CA, EFB, Gel, Lithium, MF, Wet
Capacity Range: Up to 120 Amp-Hours
Maintenance: All Battery Sizes
Power
Consumption: 75 Watts (Max)
Efficiency: 86% (120VAC / 230VAC)
Safety
Short-Circuit: Yes
Open-Circuit: Yes
Overheating: Yes
Overcharge: Yes
Spark-Proof: Yes
Reverse Polarity: Yes
Product Size
Height: 2.91in (74mm)
Width: 4.61in (117mm)
Depth: 1.93in (49mm)
Weight: 1.5lb (0.68kg)
Cable Management
DC Cable + Clamp Length: 77in (195cm)
DC Cable Size: 16
DC Fuse Size: 10
AC Cable Length: 71.7in (182cm)
AC Cable Size: 18
Oil, gas, grease, water, chemical, UV, abrasion resistant
Protection
IP Rating: IP65
Limited Warranty
3- Limited Warranty
