Description

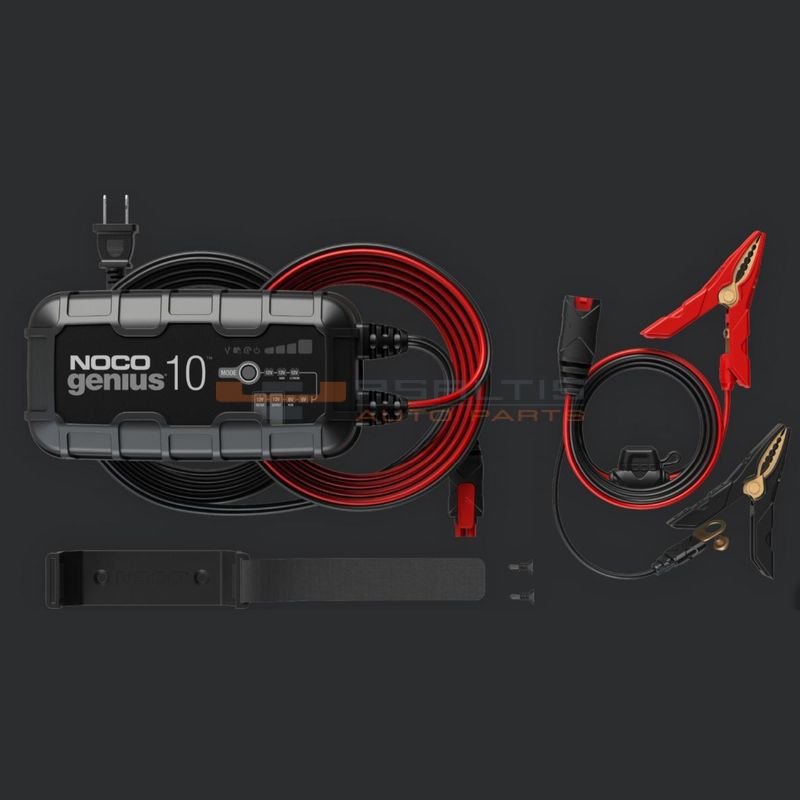

What’s In The Box

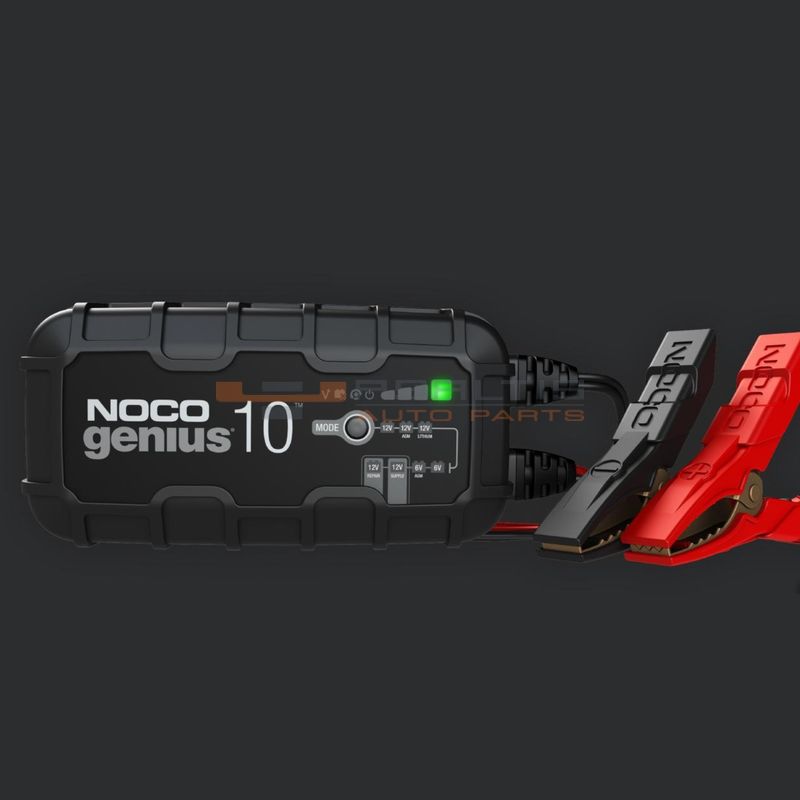

- GENIUS10 Battery Charger w/ Interchangeable Connector
- Clamps w/ Integrated Eyelets (M10)

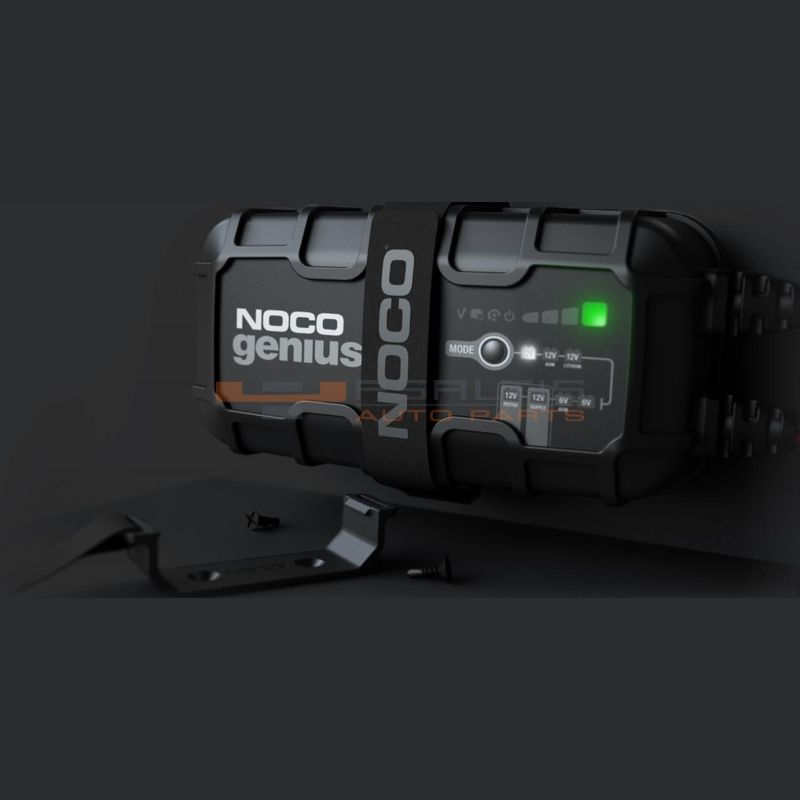

- Mounting Bracket w/ Strap
- (2) Self-Tapping Screws
- User Guide & Warranty Information
Operating Requirements
Line Voltage: 120V to 240V AC
Frequency: 50Hz to 60Hz
Operating Temperature: -4° to 104°F(-20° to 40°C)
Storage Temperature: -22° to 140°F(-30° to 60°C)
Relative Humidity: 0 to 95% Non-Condensing
Charging
Current: 10 Amps DC
Voltages: 6 Volts, 12 Volts
Chemistry: Lead-Acid and Lithium
Types: AGM, EFB, Gel, Lithium, MF, Wet
Capacity Range: Up to 230 Amp-Hours
Maintenance: All Battery Sizes
Power
Consumption: 150 Watts (Max)
Efficiency: 87% (120VAC / 230VAC)
Safety
Short-Circuit: Yes
Open-Circuit: Yes
Overheating: Yes
Overcharge: Yes
Spark-Proof: Yes
Reverse Polarity: Yes
Product Size
Height: 3.7in (94mm)
Width: 7.2in (183mm)
Depth: 2.32in (59mm)
Weight: 3.33lb (1.5kg)
Cable Management
DC Cable + Clamp Length: 77in (195cm)
DC Cable Size: 14
DC Fuse Size: 20
AC Cable Length: 71.7in (182cm)
AC Cable Size: 18
Oil, gas, grease, water, chemical, UV, abrasion resistant
Protection
IP Rating: IP65
Limited Warranty
3- Limited Warranty
